Working temperature: 0 ··· 50 ℃ Working humidity: 0-99% RH (no condensation) Work pressure: 80 ··· 120kpa Preheating time: 30s; Suggest collecting data after 60 seconds of power on Working voltage: 5V DC Working current: Average<80mA Range: 0 ··· 2000ppm/5000ppm 0 ··· 10%vol / 20%vol / 100%vol Resolution: 0.01% vol; Among them, 0 ··· 2000ppm, 5000ppm: 1ppm Signal output: Analog signal: 0.4V ··· 2V corresponds to 0 ··· 100% FS Digital signal: Modbus RTU
Description：

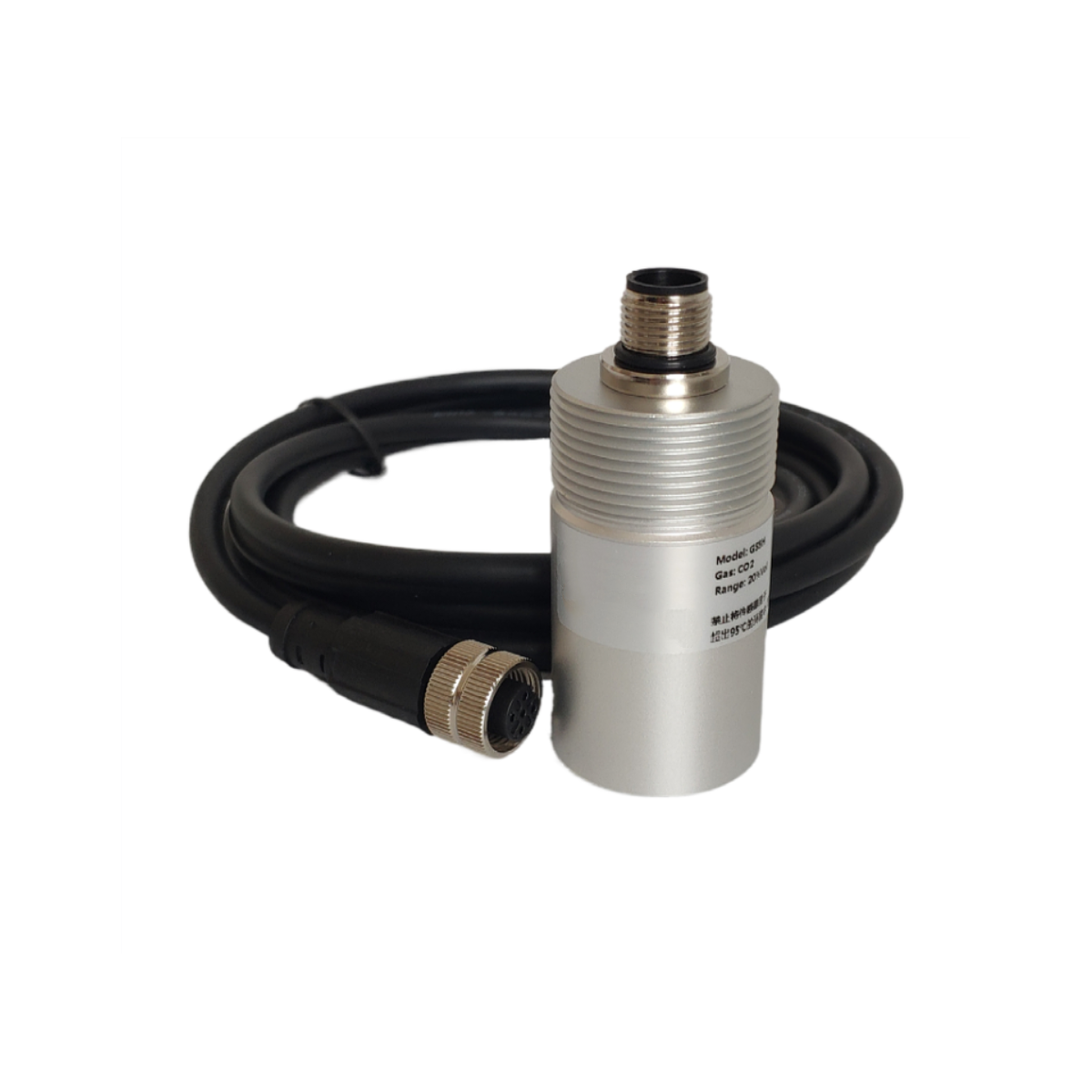

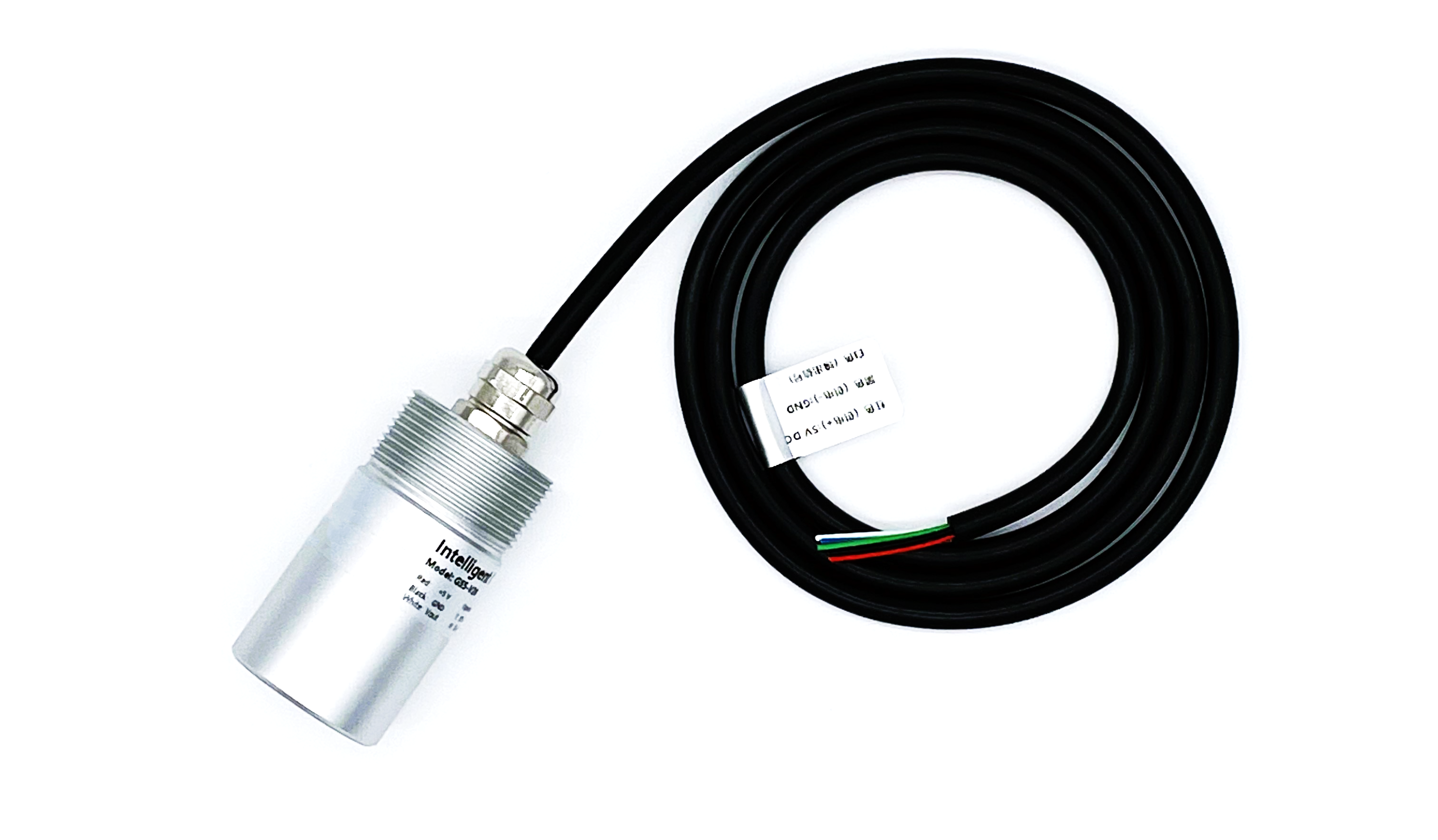

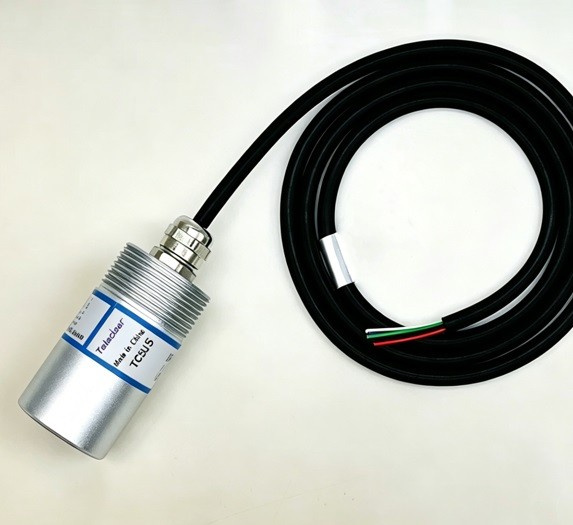

TC5plus is a new intelligent device based on dual wavelength infrared optical technology for measuring carbon dioxide
Probe, commonly used in harsh application environments (such as life science incubators) that require measurability
Can be stable, reliable, and accurate. This probe has the following characteristics:
-Adopting dual channel detectors ensures excellent long-term stability and accuracy of the sensor
-Faster response speed ensures timely feedback of concentration signals
-Wide measurement range, minimum 0 ··· 2000ppm, maximum 0 ··· 100% vol
-A wider operating temperature range, default 0 ·····+50 ℃, MAX (-40 ·····+70 ℃)
-Longer service life, with an expected lifespan of over 10 years
-The typical measurement range is 0-20% vol, and the sensor has been optimized for performance in measuring 5% CO2
-Probe light path self heating (+2 ℃·····+3 ℃) to prevent condensation in high humidity environments
-The signal adopts dual outputs of analog and digital, making it easier for users to use
Application:

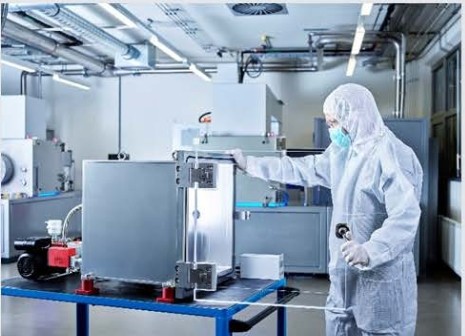

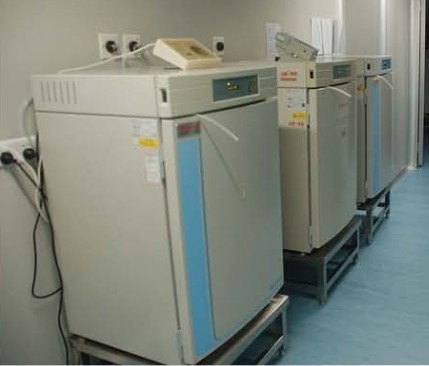

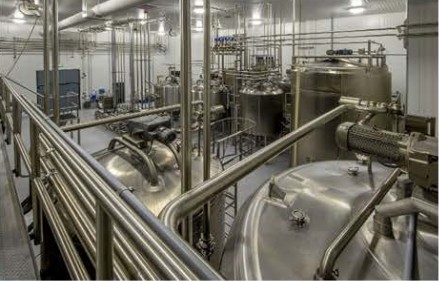

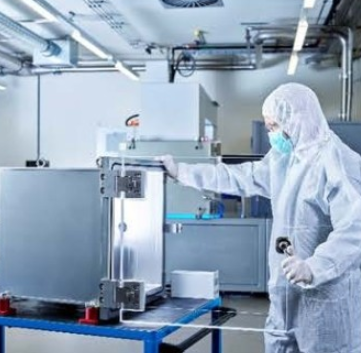

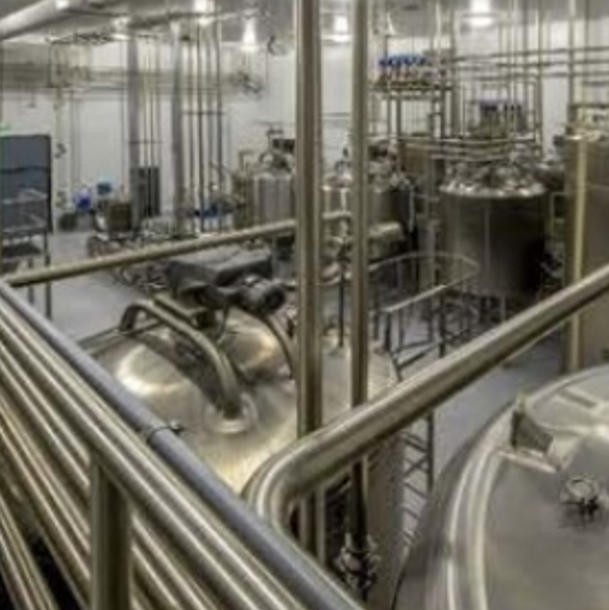

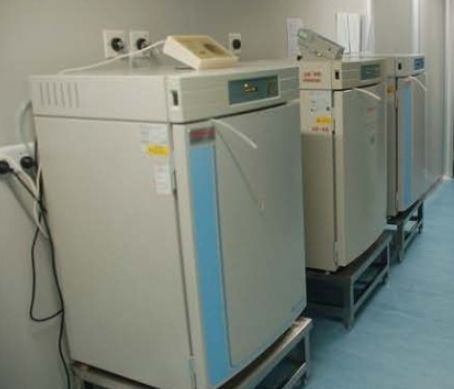

TC5plus is an ideal choice for the following fields: life science incubators, fermentation workshops, mushroom rooms, refrigerated preservation, and for stable and accurate percentage level CO2 measurement
The harsh occasion. The typical measurement range of this probe is 0 ··· 5000ppm, 0 ··· 20% vol, and the maximum can reach 100% VOL. The technical parameters meet the requirements of YY 1621-2018 Medical Dioxides
Requirements such as Carbon Incubator and JG/T 247-2009 Concrete Carbonization Test Chamber. The probe surface adopts aluminum alloy anodizing process, and the air inlet adopts metal mesh and PTFE film
Double layer protection, resistant to dust and most chemicals such as hydrogen peroxide and alcohol based disinfectants, with a higher level of protection
