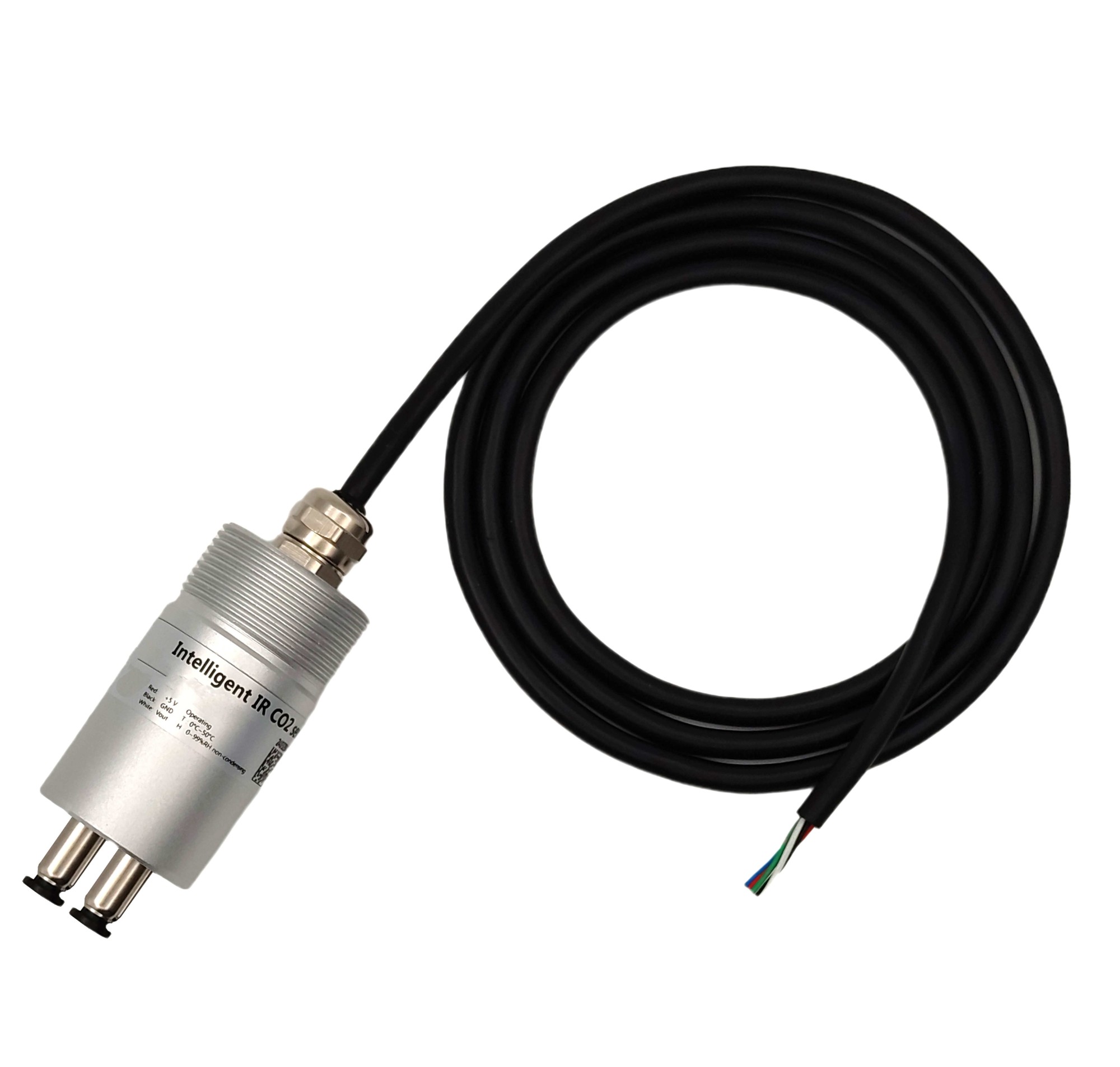

TC5T quick response CO2 sensor for incubators

-Extremely fast response speed ensures timely feedback of concentration signals
-Inlet and outlet structure suitable for trace gas detection
-Dual-channel detector ensures excellent long-term stability and accuracy of the sensor
-Wider measurement range, from 0 to 2000ppm, up to 0 to 100% vol
-Wider operating temperature range, default 0 to +50°C, max (-40 to +70°C)
-Longer service life, expected lifespan of over 10 years
-Typical measurement range 0 to 20% vol, sensor optimized for 5% CO2

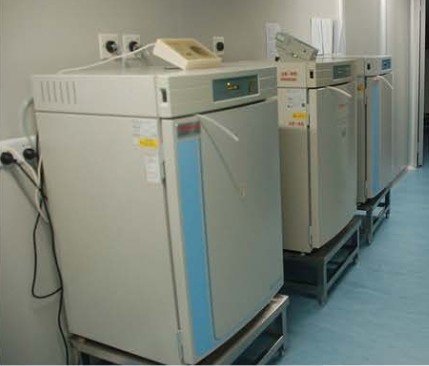

The TC5T series CO2 sensor is a new smart probe for measuring CO2 concentration based on dual-wavelength infrared technology for demanding applications (e.g. life science incubators, environmental monitoring). The probe has dual outputs of analog and digital signals, and adopts a pumping structure to quickly detect changes in carbon dioxide concentration.

Features:

-Extremely fast response speed ensures timely feedback of concentration signals
-Inlet and outlet structure suitable for trace gas detection
-Dual-channel detector ensures excellent long-term stability and accuracy of the sensor
-Wider measurement range, from 0 to 2000ppm, up to 0 to 100% vol
-Wider operating temperature range, default 0 to +50°C, max (-40 to +70°C)
-Longer service life, expected lifespan of over 10 years
-Typical measurement range 0 to 20% vol, sensor optimized for 5% CO2 measurement
-Probe optical path self-heating (+2°C to +3°C) to prevent condensation in high humidity environments

Parameters:

Working temperature: 0 ··· 50 ℃

Working humidity: 0-99% RH (no condensation)

Preheating time: 30s; Suggest collecting data after 60 seconds of power on
Response time (T90):< 5 seconds
Working voltage: 5V DC
Working current: Average<80mA
Range: 0 ··· 2000ppm/5000ppm
0 ··· 10%vol / 20%vol / 100%vol
Resolution: 0.01% vol;
Among them, 0 ··· 2000ppm, 5000ppm: 1ppm
