Product Description:
Features：
1. Diverse range, high accuracy<± 3% FS.
-Range: 5000PPM, 10% VOL, 20% VOL, 100% VOL, etc. Analytical level accuracy+3% FS, resolution: 0.01% VOL, in compliance with metrology
2. Historical time concentration data recording function.
-The data recording cycle can be set, and historical concentration data can be traced
-Concentration time data curve display
3. External diffuse CO2 measurement probe.
-Non pump suction sampling, lack of condensation in sampling pipelines, and poor measurement reliability are drawbacks
-The scattered CO2 probe is placed in the original position inside the box for measurement, making the monitoring process more reliable
Description：

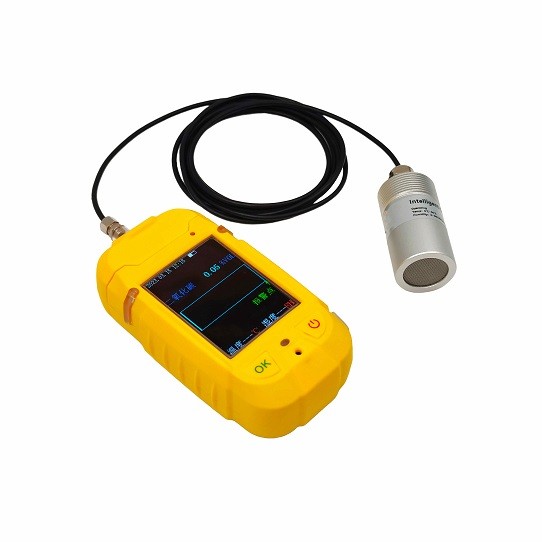

The TCApro series carbon dioxide detector is a new intelligent instrument basedon dual-wavelength infrared optical technology for diffuse measurement of carbon dioxide concentration, suitable for harsh application environments (such as life science incubators, agricultural greenhouses, soil respiration monitoring), which can monitor and record changes in carbon dioxide concentration in real time.

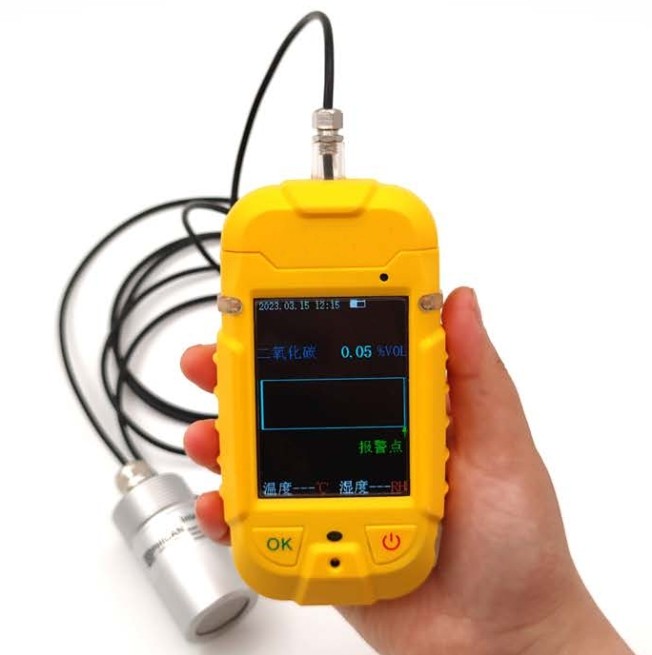

TFT color LCD screen display, visualized concentration ratio bar, displaying gas concentration measurement values, units, names, status, etc
The measuring probe adopts advanced dual channel infrared principle, with high precision and long service life. The light path self heating is not afraid of high humidity environments such as incubators and agricultural greenhouses
The lead out measuring probe can be flexibly placed inside the box to monitor real-time changes in carbon dioxide concentration inside the box
Long standby monitoring time, using large capacity lithium batteries, with overcharge, overdischarge, overcurrent protection and short circuit protection functions, continuous working time of more than 24 hours
Real time concentration recording function, concentration time curve display, easy to trace and query historical concentration data Real time clock (RTC) function, convenient for real-time recording of concentration time data
Portable, compact, versatile, and easy to operate
Parameter：
Working temperature -0 50℃
Working humidity -0... 99% RH (no condensation)
Work pressure -80... 120kPa
Alarm prompt - sound, light, vibration alarm
Maintenance cycle - every 12 months
Response time - T90<30s
Measurement range---
0-5000ppm
0-10% vol, 0-20% vol, 0-100% vol!
Resolution -0.01% vol; Among them, 0-5000ppm: 1ppm
Repeatability - ± 1.5% FS
Accuracy---
0-5000ppm, 0-10% vol, 0-20% vol: ±3%FS
0-100%vol:+ 5%FS
Cable length: 2 meters
Dimensions: 136mmx70mmx38mm (excluding cable probe)
Packaging accessories - instruction manual, certificate of conformity, factory report, charger, suitcase
Application：
细胞培养过程监测
Cell culture process monitoring
农业大棚、土壤呼吸监测
Agricultural greenhouses, soil respiration monitoring

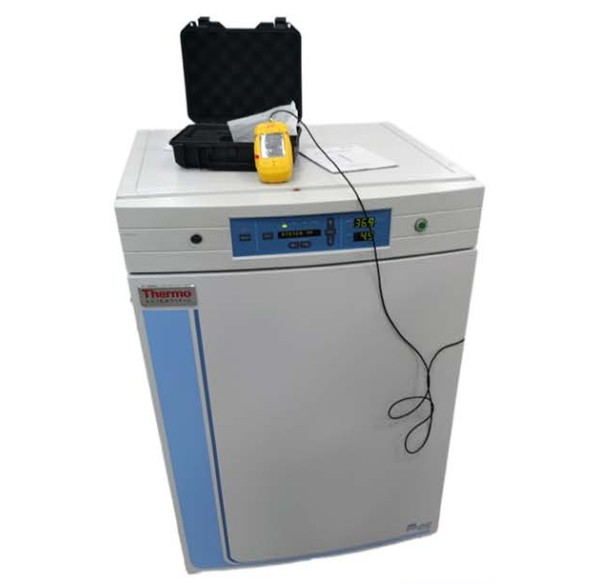

二氧化碳培养箱等生命科学仪器的生产、校准、维护
Carbon dioxide incubators and other life science instruments Production,calibration, maintenance
