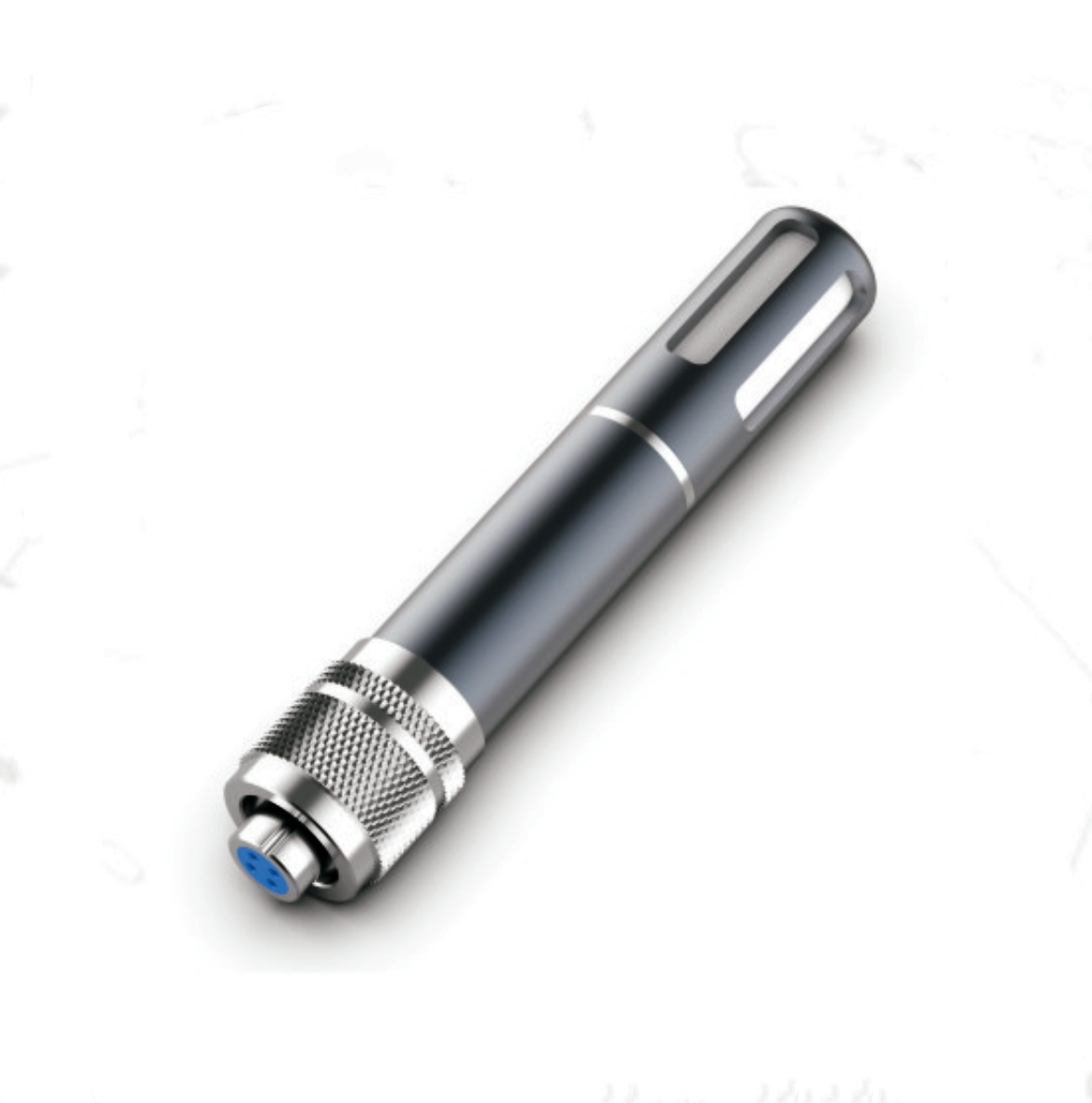

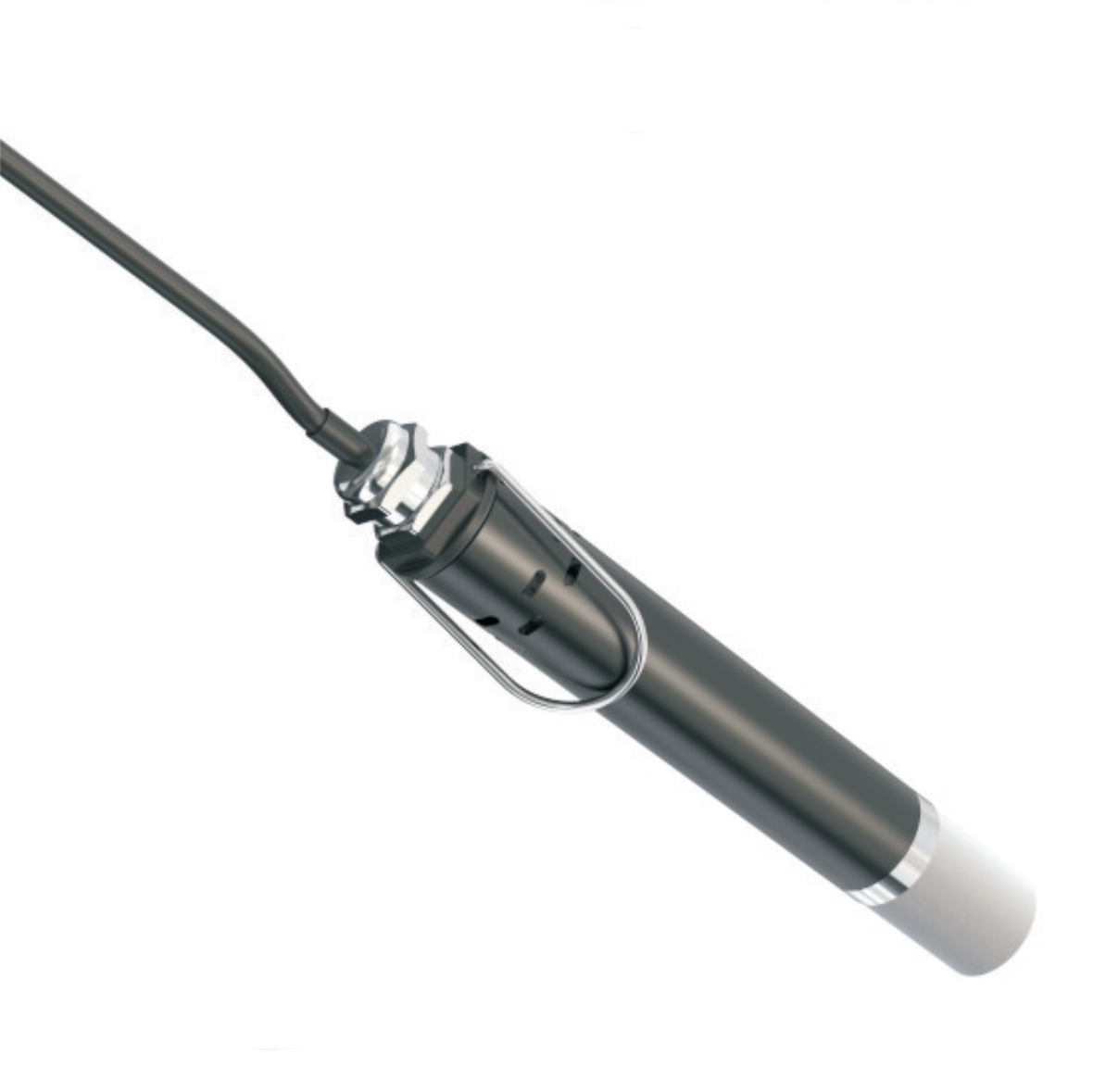

HTD7-H8 Series Calibratable Temperature and Humidity Probe

Product Features：
1.Sensitive components adopt imported high-precision temperature and humidity sensor chips
2.Digital signal output, supporting I2C and RS485 interfaces
3.The interface circuit has anti-static and surge protection
4.Small size and low power consumption
5.Meets IP65 protection

Product Description:

HTD7-H8 Temperature and Humidity Sensor Product Manual

I. Product Features

Sensitive components use imported high-precision temperature and humidity sensor chips.
Digital signal output, HTD7-H8 output is I2C interface.
The interface circuit has ESD and surge protection.
Compact size, low power consumption.
Meets IP65 protection.

II. Application Fields

HTD7-H8 products can be used for temperature and humidity detection in storage, cold chain, breeding,

and other industries. With the company's specially designed connecting cables,

it is convenient for multi-point layout installation.

III. Product Performance Indicators

Electrical Performance Parameters:
- Rated operating voltage: 3.3V;
- Extreme operating voltage: Minimum 2.1V, Maximum 3.6V.
- Power consumption: Maximum ≤1.5mA.

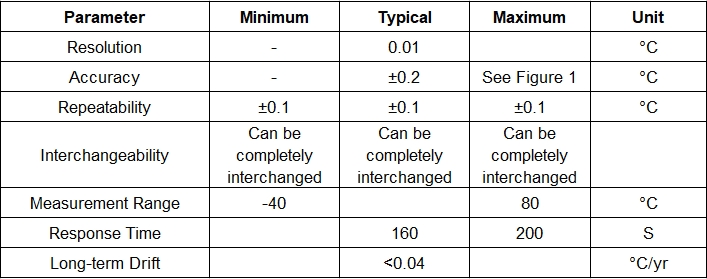

Temperature Measurement Performance Indicators

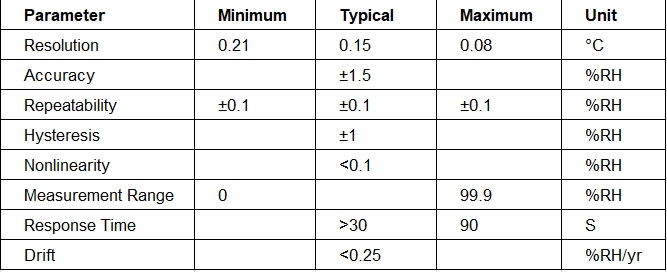

Relative Humidity Measurement Performance Indicators
